ISO 7379 Socket Head Shoulder Bolts
ISO 7379 Socket Head Shoulder Bolts, made of steel, class 8.8, zinc plated or black oxide, M6 - M30 from China Shoulder Bolts Manufacturer.
Material: Steel ;
Grade: class 8.8
Surface Treatment:Zinc plated, Black Oxide
Size: M6 - M30
 |
 |

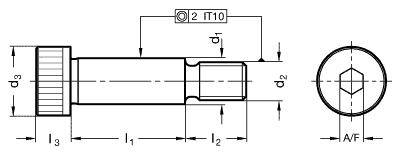

ISO 7379 Socket Head Shoulder Bolts Specification:
| Size (d) |
Shank Dia. (ds) |
Head Dia. dk max |
Head Thicknes k max |
S | b |
| M 5 | 6.5 | 10,22 | 4,5 | 3 | 9,5 |
| M 6 | 8 | 13,27 | 5,5 | 4 | 11 |
| M 8 | 10 | 16,27 | 7 | 5 | 13 |
| M 10 | 12 | 18,27 | 8.9 | 6 | 16 |
| M 12 | 16 | 24,33 | 10.11 | 8 | 18 |
| M 16 | 20 | 30,33 | 14 | 10 | 22 |
| M 20 | 24 | 36,39 | 16 | 12 | 27 |
