Drop-in Hammer Head T Bolts
Drop-in Hammer Head T Bolts, T head bolt for EURO series Aluminium profile, made of steel, nickel plated, size M5 - M10 from China T Head Bolts Manufacturer.
Material: Steel ;
Grade: class 8.8
Surface Treatment: Nickel Plated
Size: M5 - M10
 |
 |

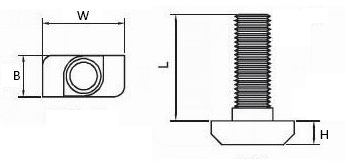

Drop-in Hammer Head T Bolts Specification:
| Aluminium Profile Type |
Size | A | B | C | D | E | F |
| EURO 20 Series | 20M5*12 | M5 | 12 | 4 | 10 | 6 | 3 |
| 20M5*16 | M5 | 16 | 4 | 10 | 6 | 3 | |
| EURO 30 Series | 30M6*12 | M6 | 12 | 5.5 | 15.5 | 8 | 2.6 |
| 30M6*16 | M6 | 16 | 5.5 | 15.5 | 88 | 2.6 | |
| 30M6*20 | M6 | 20 | 5.5 | 15.5 | 8 | 2.6 | |
| EURO 40 Series | 40M8*16 | M8 | 16 | 5.5 | 18 | 8 | 4.5 |
| 40M8*20 | M8 | 20 | 5.5 | 18 | 8 | 4.5 | |
| 40M8*25 | M8 | 25 | 5.5 | 18 | 8 | 4.5 | |
| 40M8*35 | M8 | 35 | 5.5 | 18 | 8 | 4.5 | |
| 40M8*40 | M8 | 40 | 5.5 | 18 | 8 | 4.5 | |
| EURO 45 Series | 45M8*20 | M8 | 20 | 6 | 19 | 9.8 | 4.9 |
| 45M8*25 | M8 | 25 | 6 | 19 | 9.8 | 4.9 |
