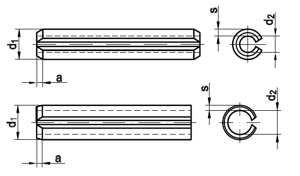

DIN 7346 Light Type Spring Pins
DIN 7346 Light Type Spring Pins made of spring steel 65Mn, Light duty slotted straight spring pin , size dia. 1.0mm - 20mm, Length 10-200mm from professional Spring pins manufacturer in China.
Standard: DIN 7346 , equavalent with ISO 13337
 |
 |
| Size | a | d min | d max | d2 | s |
| Φ2 | 0.2 | 2.3 | 2.4 | 1.9 | 0.2 |
| Φ2.5 | 0.25 | 2.8 | 2.9 | 2.3 | 0.25 |
| Φ3 | 0.25 | 3.3 | 3.5 | 2.7 | 0.3 |
| Φ3.5 | 0.3 | 3.8 | 4 | 3.1 | 0.35 |
| Φ4 | 0.5 | 4.4 | 4.6 | 3.4 | 0.5 |
| Φ4.5 | 0.5 | 4.8 | 5 | 3.8 | 0.5 |
| Φ5 | 0.5 | 5.4 | 5.6 | 4.4 | 0.5 |
| Φ6 | 0.7 | 6.4 | 6.7 | 4.9 | 0.75 |
| Φ7 | 0.7 | 7.5 | 7.8 | 6 | 0.75 |
| Φ8 | 1.5 | 8.5 | 8.8 | 7 | 0.75 |
| Φ10 | 2 | 10.5 | 10.8 | 8.5 | 1.0 |
| Φ11 | 2 | 11.5 | 11.8 | 9.5 | 1.0 |
| Φ12 | 2 | 12.5 | 12.8 | 10.5 | 1.0 |
| Φ13 | 2 | 13.5 | 13.8 | 11 | 1.25 |
| Φ14 | 2 | 14.5 | 14.8 | 11.5 | 1.5 |
| Φ16 | 2 | 16.5 | 16.8 | 13.5 | 1.5 |
| Φ18 | 2 | 18.5 | 18.9 | 15 | 1.75 |
| Φ20 | 2 | 20.5 | 20.9 | 16.5 | 2.0 |
| Φ21 | 2 | 21.5 | 21.9 | 17.5 | 2.0 |
| Φ23 | 3 | 23.5 | 23.9 | 19.5 | 2.0 |
| Φ25 | 3 | 25.5 | 25.9 | 21.5 | 2.0 |
| Φ28 | 3 | 28.5 | 28.9 | 23.5 | 2.5 |
| Φ30 | 3 | 30.5 | 30.9 | 25.5 | 2.5 |
