DIN 1481 Spring Pins, Stainless Steel
DIN 1481 Spring Pins made of Stainless steel SUS304, A2 grade , size dia. 1.0mm - 10mm, Length 10-200mm from professional Spring pins manufacturer in China.

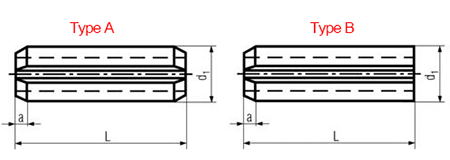

Standard: DIN 1481 , equavalent with ISO 8752
 |
 |
| Dia. | a | d1 min | d1 max | d2 | s |
| 1.0 | 0.15 | 1.2 | 1.3 | 0.8 | 0.2 |
| 1.5 | 0.25 | 1.7 | 1.8 | 1.1 | 0.3 |
| 2.0 | 0.35 | 2.3 | 2.4 | 1.5 | 0.4 |
| 2.5 | 0.4 | 2.8 | 2.9 | 1.8 | 0.5 |
| 3.0 | 0.5 | 3.3 | 3.5 | 2.1 | 0.6 |
| 3.5 | 0.6 | 3.8 | 4 | 2.3 | 0.75 |
| 4.0 | 0.65 | 4.4 | 4.6 | 2.8 | 0.8 |
| 4.5 | 0.8 | 4.9 | 5.1 | 2.9 | 1 |
| 5.0 | 0.9 | 5.4 | 5.6 | 3.4 | 1 |
| 6.0 | 1.2 | 6.4 | 6.7 | 3.9 | 1.25 |
| 8.0 | 2 | 8.5 | 8.8 | 5.5 | 1.5 |
| 10 | 2 | 10.5 | 10.8 | 6.5 | 2 |
| 12 | 2 | 12.5 | 12.8 | 7.5 | 2.5 |
| 13 | 2 | 13.5 | 13.8 | 8.5 | 2.5 |
